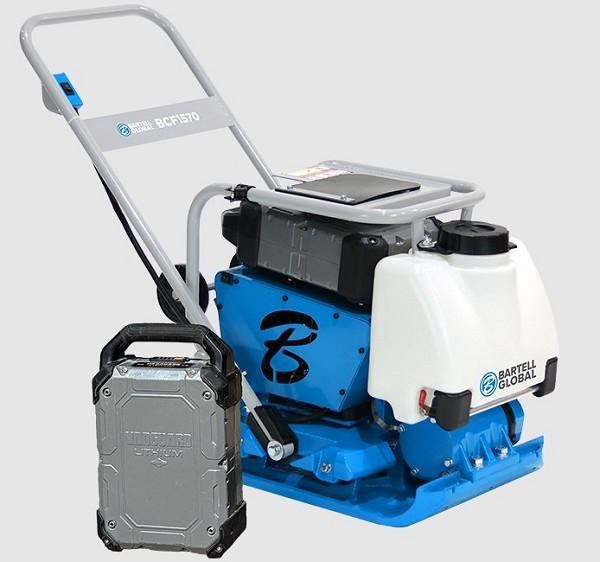

TAMPER PLATE COMPACTOR FWD BARTELL W/2 BATTERIES AND CHARGER

Product Description

Bartell forward plates are innovative, hard-hitting, and low maintenance. The BCF1570 is our most popular forward compactor and is perfect for a wide range of compaction applications. The built-in water tank allows the compactor to be used on asphalt, and also allows for better dust control on dirt/soil.

Robust throttle control mounted on handle for safe and convenient operator control
Anti-vibration handle
Folding handle for compact storage
Retractable wheels flip down for built-in mobility
Integrated lifting bale for safe loading and unloading
Straight-edge plate design leaves no unreachable margins
Sealed housing keeps debris from interfering with the belt
Built-in removable water tank
Optional urethane mat protects pavers and slabs from scratches and breakage

Technical Specifications
Power Source BATTERY: Vanguard 1.5kW 6.7hp (5kW)
Compaction Force 3461 lbf,15 kN,1570 kgf
Max Travel Speed 82'/min (25m/min)
Length 44" (1118mm)
Width 20" (508mm)
Height 33" (838mm)
Weight 250 lbs (113.5kg) including battery
Plate Size 20" x 21" (500mm x525mm)
