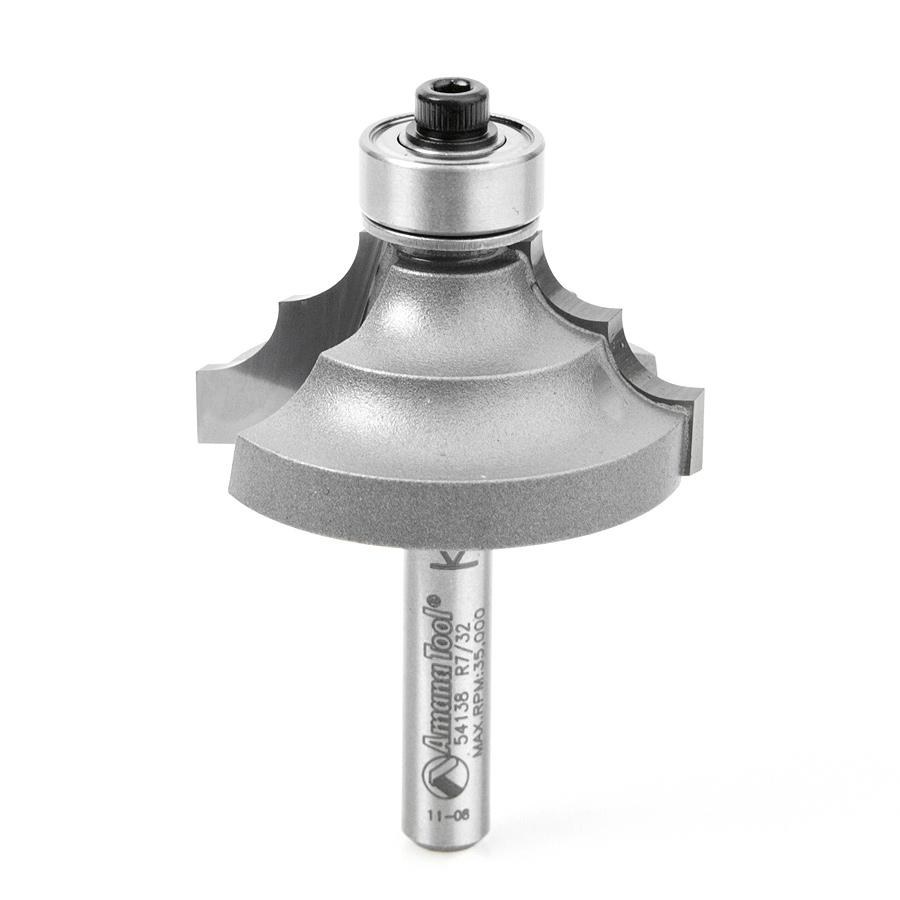

ROUTER BIT, 7/32" R, EDGE FORMING

A double quarter-round profile is produced by this tool. The depth-of-cut setting determines whether or not a fillet is formed at the top. Switching from the standard pilot bearing to the optional 3/8" bearing introduces a fillet at the bottom of the profile. Use in a handheld or table-mounted router.

Diameter (D): 1-3/8
Radius (R): 7/32
Cutting Height (B): 11/16
Shank (d): 1/4
Overall Length (L): 2-3/16
Replacement Bearing: 47706
Flutes: 2
