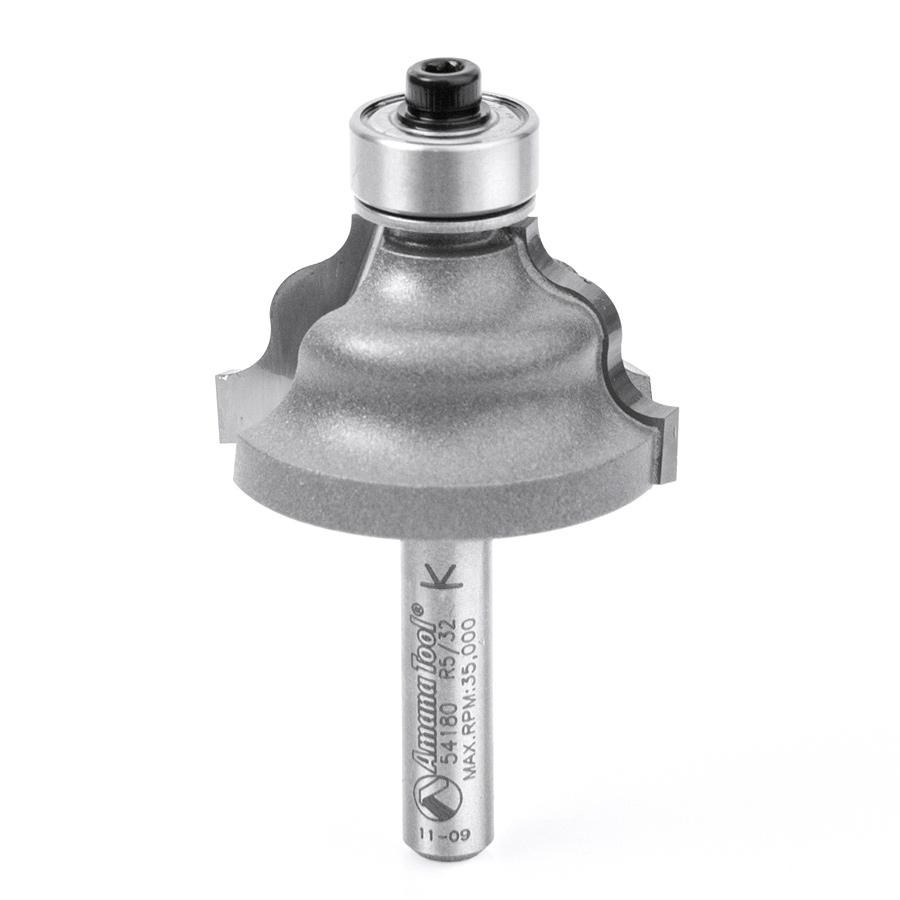

ROUTER BIT, 5/32" R, WAVY EDGE

This bit produces an undulating curve with two convex forms flanking a concave form. All the radii are equal. A shoulder on the cutter can form a fillet, depending upon the depth-of-cut setting. Use in a handheld or table-mounted router.

Diameter (D): 1-1/4
Radius (R): 5/32
Cutting Height (B): 11/16
Shank (d): 1/4
Overall Length (L): 2-1/4
Replacement Bearing: 47706
Flutes: 2
