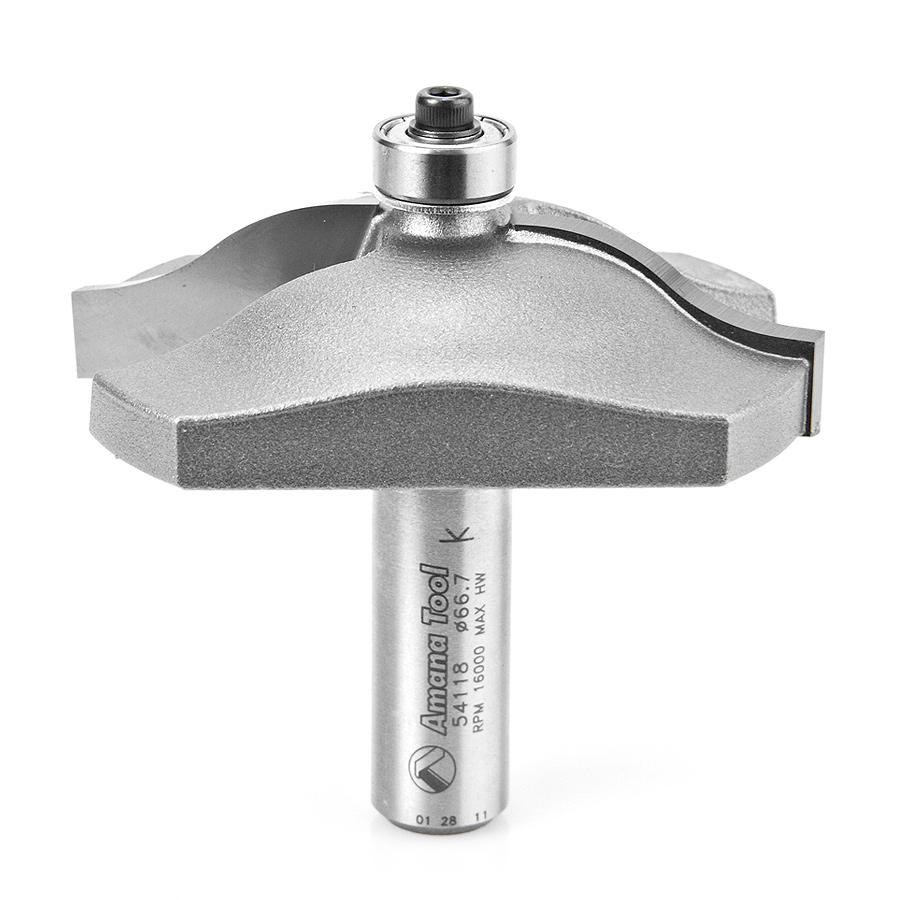

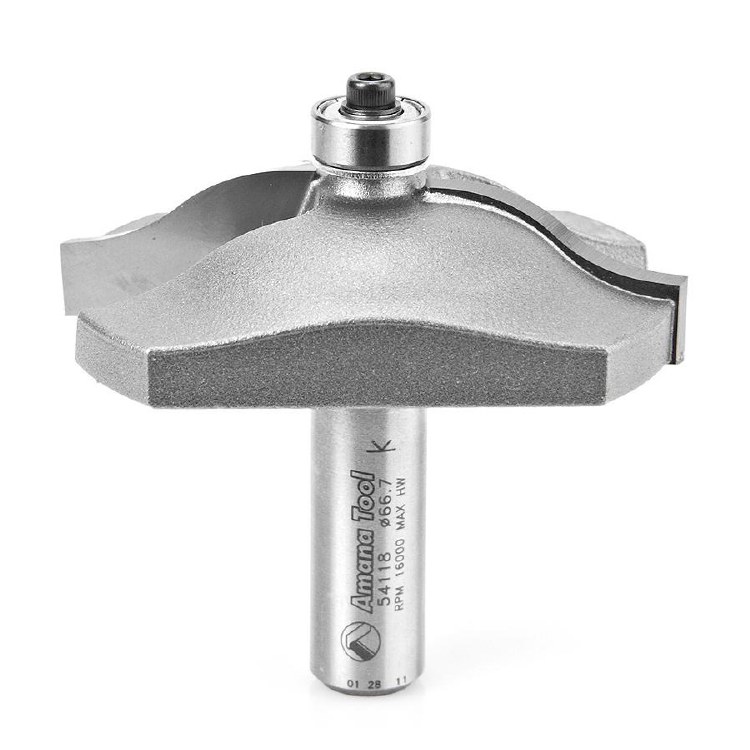

ROUTER BIT, 2 5/8", OGEE, HORIZONTAL RAISED PANEL

Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2" shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended. Maximum RPM 20,000.

Cut Depth (A): 1-1/16
Diameter (D): 2-5/8
Radius (R): 3/4
B1: 5/16
Cutting Height (B): 5/8
Shank (d): 1/2
Overall Length (L): 2-1/2
Replacement Bearing: 47706
Flutes: 2
