HONDA UNITS-HONDA FLOOR PLAN $799.99
WAJT-3006879

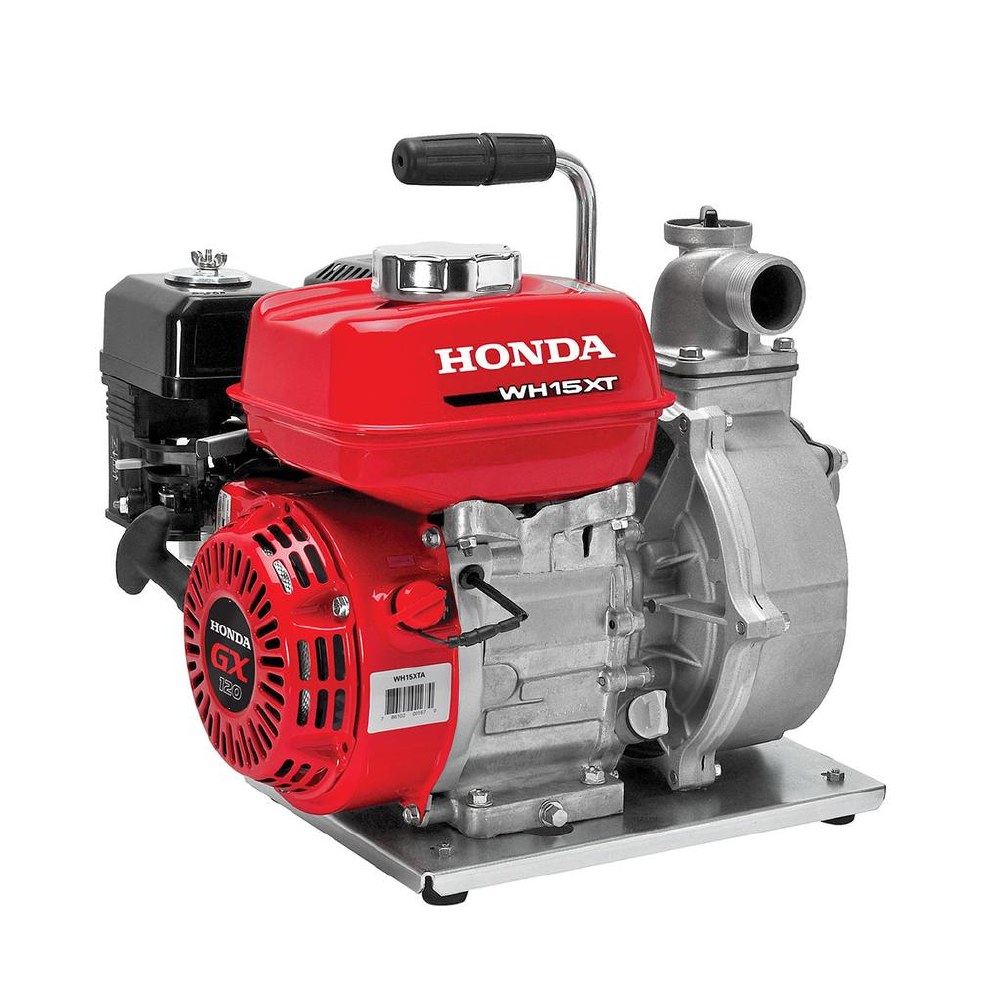

PUMP, HIGH PRESSURE, 1.5", 98 GAL/MIN, HONDA
Part Number: WH15XT2ADescription
WH15
WH15XTA
1 1/2" high pressure water pump
98 gal./min. capacity
57 psi max.
Cast iron volute and impeller
Specifications
EngineGX120
Displacement118cc
Bore and stroke2.4" x 1.7"
Compression Ratio8.5:1
Oil AlertN/A
Pump TypeHigh Pressure, Centrifugal, Self-priming
VoluteRigid Mounted Cast Iron
ImpellerCast Iron
Mechanical Seal (Pump case / impeller)Carbon/Ceramic
Priming time80 sec. at 16.4 ft.
Drive systemDirect
Discharge capacity98 gals./min.
Suction port diameter1.5" NPT
Discharge port diameter1.5" NPT
Total head lift131 ft.
Suction head lift26 ft.
Maximum pressure57 psi
Solids handlingN/A
Dimensions (LxWxH)16.3" x 14.2" x 16.3"
Dry weight49 lbs.
Fuel Capacity0.53 gal
Run Time @ Max Discharge1.5 hr
Strainer Part #78325-YB7-020
Residential Warranty24 months
Commercial Warranty12 months
WH15XTA
1 1/2" high pressure water pump
98 gal./min. capacity
57 psi max.
Cast iron volute and impeller
Specifications
EngineGX120
Displacement118cc
Bore and stroke2.4" x 1.7"
Compression Ratio8.5:1
Oil AlertN/A
Pump TypeHigh Pressure, Centrifugal, Self-priming
VoluteRigid Mounted Cast Iron
ImpellerCast Iron
Mechanical Seal (Pump case / impeller)Carbon/Ceramic
Priming time80 sec. at 16.4 ft.
Drive systemDirect
Discharge capacity98 gals./min.
Suction port diameter1.5" NPT
Discharge port diameter1.5" NPT
Total head lift131 ft.
Suction head lift26 ft.
Maximum pressure57 psi
Solids handlingN/A
Dimensions (LxWxH)16.3" x 14.2" x 16.3"
Dry weight49 lbs.
Fuel Capacity0.53 gal
Run Time @ Max Discharge1.5 hr
Strainer Part #78325-YB7-020
Residential Warranty24 months
Commercial Warranty12 months
