LASER, GREEN BEAM ROTATING TRIPOD, GRADE ROD, DETECTOR, REMOTE, CEILING HANGER, 4 AH BATTERIES, CHARGER, CASE

GRL4000-90CHVGK Professional
Rotary Lasers

18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser Kit with (1) CORE18V® 4 Ah Advanced Power Battery
Fully featured rotary laser – has Dual Dial-In Slope, CORE18V® power, Bluetooth® connectivity, uCAL user-calibration and more
Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes
Dual power source – for extended runtime and option of a 4 or 8 Ah CORE18V® battery or a battery adapter with four (D) cell batteries
Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode
Vertical plumb and vertical orientation – provides a vertical beam at 90° point for layout, squaring and plumb applications and operates in a vertical orientation for façade installation and long-range layout applications
Electronic self-leveling – allows for easy setup and use on the job
Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
Variable-speed and scan-angle selection – allows for maximum visibility at different lighting conditions
Comprehensive kit – includes a remote control, 18V 4 Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case
AMPShare™ System – designed to be multi-brand compatible across many cordless products to make managing your work day easier
AMPShare™ System compatibility – 18V batteries and chargers are compatible with Bosch 18V power tools and a growing list of cordless products from AMPShare™ brands
Bosch measuring and layout tools are covered by a one year limited warranty with an additional year when you register your tool within eight weeks of purchase - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Bosch 18V batteries are covered by a three year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
Bosch 18V chargers are covered by a five year limited warranty - for details, visit https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99
View less
Functions & key features
Working range up to 2000 Ft. with optional receiver.
User calibration for fast and easy calibration and precise work.
Dual slope for creating inclined surfaces in two axes.
IP 68 - Dust tight and waterproof.
Withstands falls from a height of 2 m* from a tripod (*when the measuring device, mounted in a horizontal position on a tripod, falls onto a flat concrete floor after tipping).
Buy Now
rotary-laser-revolve-AMPShare-CORE18V-GRL4000-90CHVGK-bosch-kit
Your Selected Variant
GRL4000-90CHVGK Professional
Technical data
The most important data
Battery
Lithium-Ion Battery
Height in
11 "
IP Rating
IP 68
Laser Beam Color
Green
Laser Diode
Class 2, 500-540 nm
Length in
12.8 "
Leveling Type
Self-Leveling, Up to 5°
Material
Plastic Composite
Mount Threading
5/8-11
Operating Temperature
14° F / -10° C ~1 22° F / 50° C
Range
Up to 4,000-ft.
Weight
8.2 lb
Weight (lbs.)
8.2
Width in
7.4 "
Works With
Laser Receivers, LR40G, Tripods, BT160, BT170HD, BT300HD, Grade Rods, GR500, GR16, Batteries, GBA18V40, GBA18V80, Chargers, GAL18V-40, GAL18V-160C, GAL18V6-80, BC1880, GAX1218V30

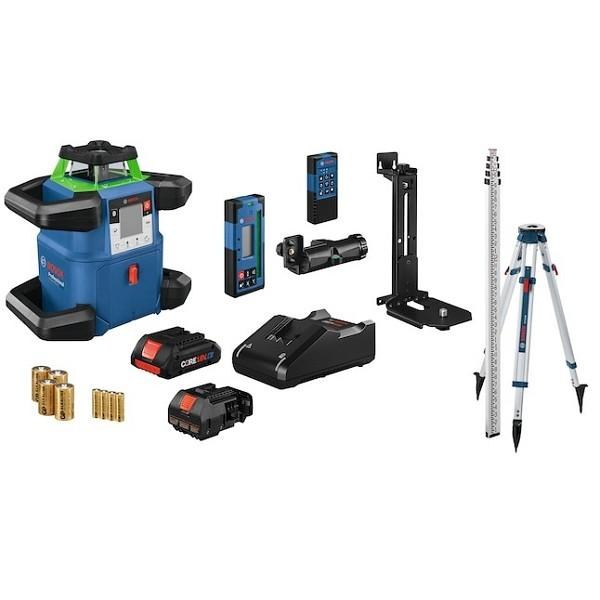

Includes
(1) GRL4000-90CHVG 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser
(1) LR40G Laser Receiver with Bracket
(1) GBA18V40 18V CORE18V® Lithium-Ion 4 Ah Advanced Power Battery
(1) 18V Battery Charger
(1) BA1 Alkaline Battery Adapter
(4) D Batteries
(4) AA Batteries
(1) BT170 Heavy-Duty Aluminum Tripod
(1) GR13 13 Ft. Grade Rod
(1) WM6 Wall Mount
(1) RC5 Remote Control
(1) Carrying Case
Fully featured rotary laser – has Dual Dial-In Slope, CORE18V® power, Bluetooth® connectivity, uCAL user-calibration and more
Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes
Dual power source – for extended runtime and option of a 4 or 8 Ah CORE18V® battery or a battery adapter with four (D) cell batteries
Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode
Vertical plumb and vertical orientation – provides a vertical beam at 90° point for layout, squaring and plumb applications and operates in a vertical orientation for façade installation and long-range layout applications
Electronic self-leveling – allows for easy setup and use on the job
Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
