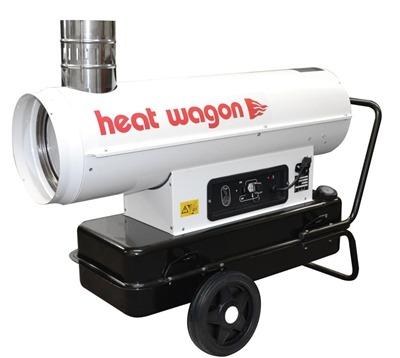

INDIRECT FIRED, 110,000 BTU KEROSENE/DIESEL/OIL HEAT WAGON

CSA approved
High pressure operation
Four-loop exhaust gas system for higher efficiency
Output temperature 160ºF
Extra large fuel tanks for extended run times
Runs on #1 & #2 diesel, kerosene, JP-8 or Jet A
Low power consumption-runs on 15 amp circuit
Optional thermostat
“One Man” maneuverability
Input 110,000 BTU/hr
Fuel Fuel Oil
Fuel Capacity 17.2 gallons
Fuel Consumption 0.80 GPH
Run Time 22 hrs
Electrical 120V
Fan 1,020 CFM
Temperature Rise 160 degrees
Weight 100 lbs. empty
Ductable up to 25ft
Dimensions 49in(L) x 20in(W) x 31in(H)

This Heat Wagon 110,000 BTU Indirect-Fired Oil Heater HVF110 is a perfect choice for any smaller industrial application. This oil-fueled heater produces clean, dry heat. The Four-Loop Exhaust System™ helps produce the clean, dry air by providing higher efficiency while in use. The 17 gallon fuel tank delivers up to 22 hours run time! The heater runs on #1 or #2 diesel, kerosene, JP-8 or Jet-A fuel. This unit is ductable up to 25 feet (duct and adapter SOLD SEPARATELY), allowing warm air to be spread around evenly. With an output of 880 CFM, this heater will have a temperature rise of 160 degrees F. Manufactured with two wheels and a handle, this heater has one-man maneuverability!

The Heat Wagon IDF Oil Fired Heater, HVF110, has an output of 110K BTU/HR. It runs on a 15 amp circuit, which means low-power consumption. The heater weighs 100 pounds when empty. The dimensions (L X W X H) are 49" X 20" X 31". An optional thermostat is available (part #THIDF, SOLD SEPARATELY), which allows constant temperature control between 30-110 degrees F. It is CSA approved.

Additional Product Information

Indirect oil-fired heater
Produces clean, dry heat
Ductable up to 25'
17 gallon fuel tank
22 hour run time
