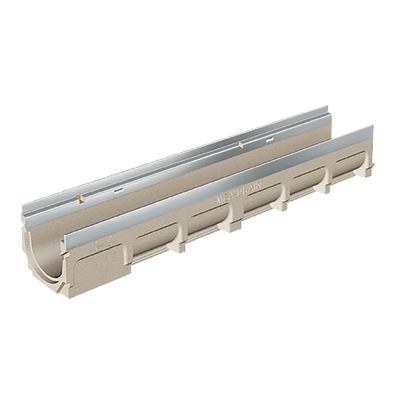

TRENCH DRAIN, CONPOLY-GALVANIZED EDGE, SLOPE, 1 METER (39.37"), REQUIRES GRATE

MIFAB®'s T1500-PB-13 series channels shall be 39.4” (1000 mm) long with a 4" (100 mm) internal width. Interconnecting channels sections
are made from high strength Polymer Concrete and available in sloping and non-sloping (neutral) channels. Each channel comes with a
standard 4 mm galvanized steel edge rail which is mechanically embedded in the channel.

Installation devices, plastic end cap/outlet cap, and catch basins are available accessories. System comes complete with 4" preformed bottom
outlets at T1500, T1510, T1520 and T1530 channel locations. Grates (separate Specification Sheets) are available in in Load Class A-E in a
variety of materials. Grates utilize the patented “Clipfix” locking mechanism.
