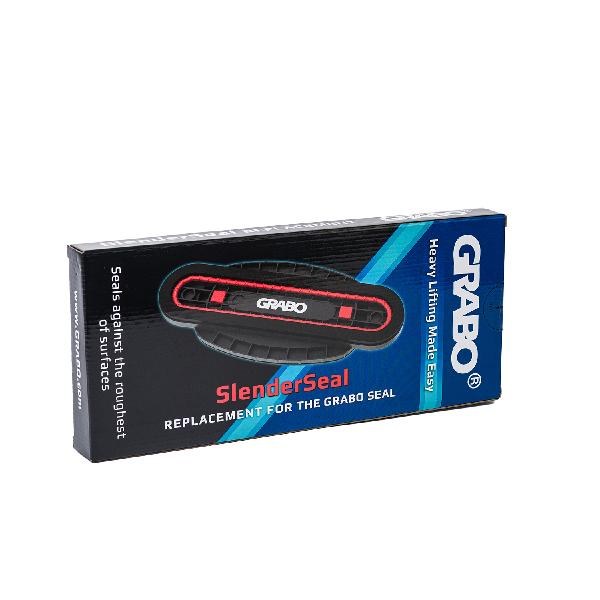

SEAL, SLENDER RUBBER SEAL REPLACMENT (GRABO)

Description
The Slender Seal is the ultimate seal for lifting and handling narrow surfaces like plank tiles, beams, and pipes. At 4 inches wide, it's designed for precise and secure lifting of heavy or curved materials. Durable and reliable, it’s perfect for both professional contractors and DIY enthusiasts. Upgrade your toolkit with the Slender Seal to enhance efficiency and achieve superior results on any project.

Maximum Capacity lifting is 132 lb (60 kg)



GRABO Slender seal specifications:
Black foam seal
Material SBR rubber foam sponge
Color Black
L x W x H 16.2 x 6.9 x 1.24” (411 x 175 x 31.5 mm)
Dimension of seal 371 x 65 mm
Density 10.6 Lb/cft (170 kg/m^3)
Hardness, Shore C ~10 +/-2
Tearing pressure 1800 Psi (126 kg/cm^2)
Compression to 25% size at 8.5 Psi (6000 kg/m^2)
Lifetime (Compressions till performance reduction). ~900
Water Absorption, % <=5
Shrinkage at 160F (70C) for 24 hrs, % <=20
Recommended Storage Temperature Room temperature
Red seal
Material Silicon Foam
Color Red
L x W x H 16.2 x 6.9 x 1.24” (411 x 175 x 31.5 mm)
Density 40.5 Lb/cft (650 kg/m^3)
Hardness, Shore C 55 +/-5
Water Absorption, % <=4
Recommended Storage Temperature Room temperature
Full seal
Features Combined seal on plastic frame Slender profile
Lifting Capacity:
Perpendicular Hold Z Parallel Hold Y Parallel Hold X
Maximum value Safe value（50%) Maximum value Safe value（50%) Maximum value Safe value（50%)
Glass 225 Lbs (100kg) 110 Lbs (50kg) 110 Lbs (50kg) 55 Lbs (25kg) 220 Lbs (100kg) 110 Lbs (50kg)
Metal 145 Lbs (66kg) 72.5 Lbs (33kg) 110 Lbs (50kg) 55 Lbs (25kg) 220 Lbs (100kg) 110 Lbs (50kg)
Wood 132 Lbs (60kg) 66 Lbs (30kg) 66 Lbs (30kg) 33 Lbs (15kg) 176 Lbs (80kg) 88 Lbs (40kg)
Rough Concrete 105 Lbs (48kg) 52.5 Lbs (24kg) 110 Lbs (50kg) 33 Lbs (15 kg) 220 Lbs (100kg) 110 Lbs (50kg)
