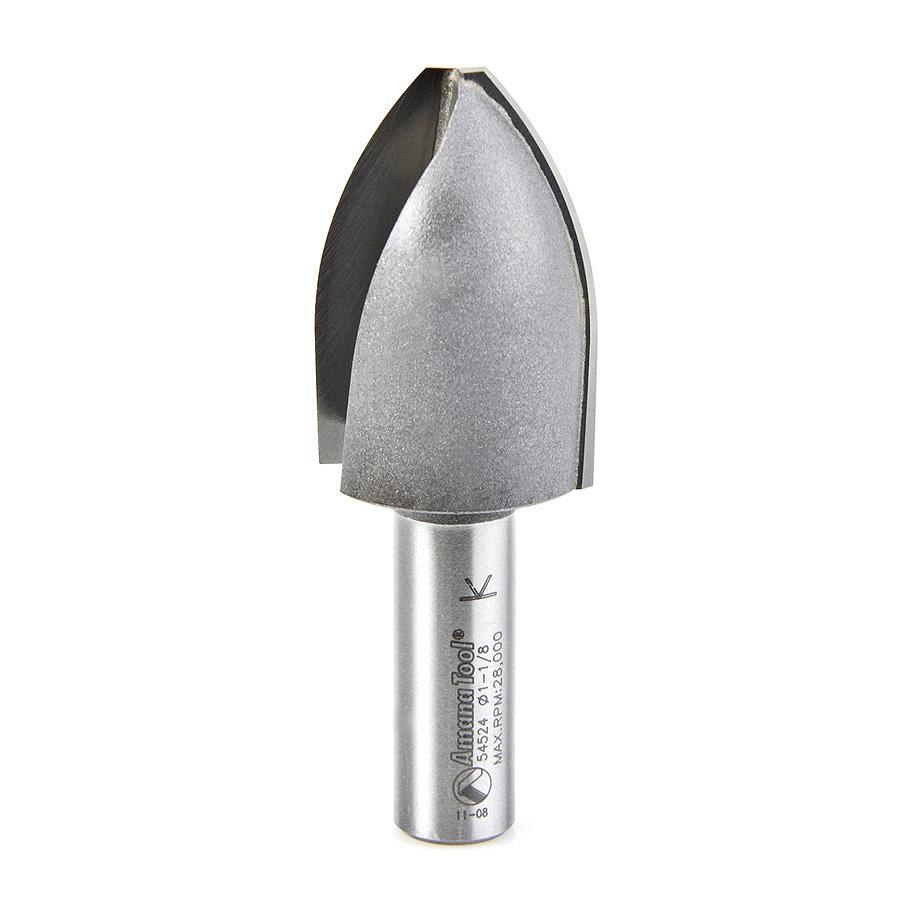

ROUTER BIT, COVE, VERTICAL RAISED PANEL, 2 FLUTE

Raised panels with a low-horsepower, fixed speed router using these VERTICAL raised panel bits. You must do the work on a router table, with the work on edge, braced against the fence. Arched or curved shapes (i.e.: "cathedral" door panels) cannot be routed. To prolong tool life and get the best cut finish, several passes are recommended.

Diameter (D): 1-1/8
D1: 9/32
Cutting Height (B): 1-5/8
Shank (d): 1/2
Overall Length (L): 3-1/8
Type: Cove
R1: 1-9/16
Flutes: 2
