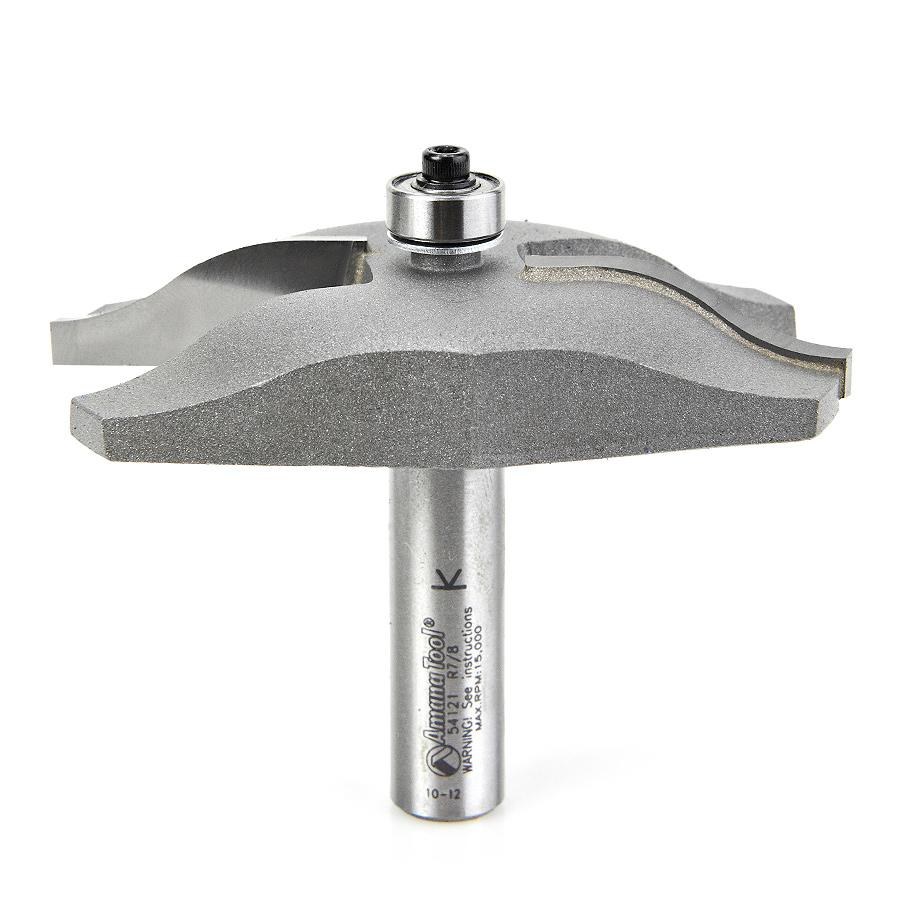

ROUTER BIT, 3 3/8", OGEE, HORIZONTAL RAISED PANEL

Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2" shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended. Maximum RPM 14,000.

Cut Depth (A): 1-7/16
Diameter (D): 3-3/8
Radius (R): 7/8
Cutting Height (B): 5/8
B1: 3/8
Shank (d): 1/2
Overall Length (L): 3
Replacement Bearing: 47706
Flutes: 2
