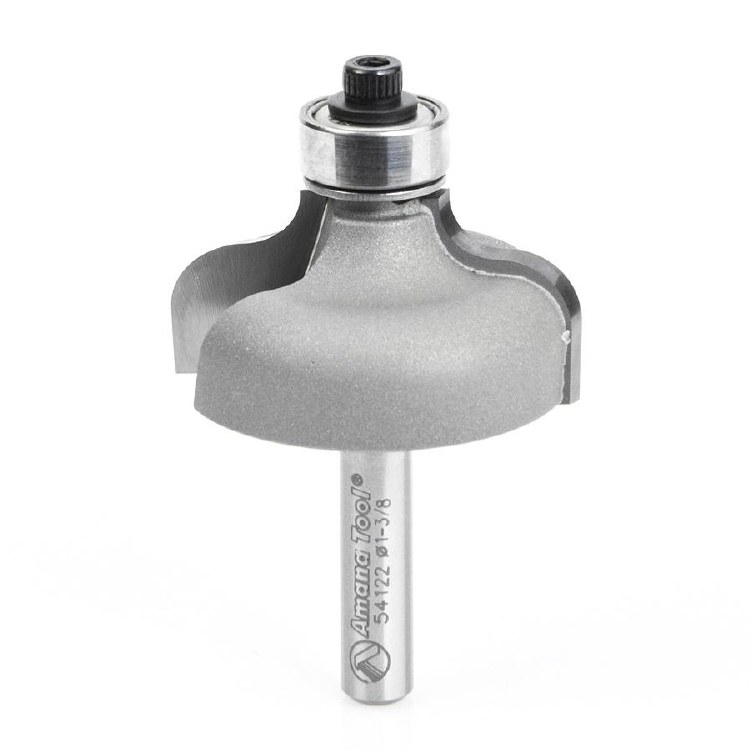

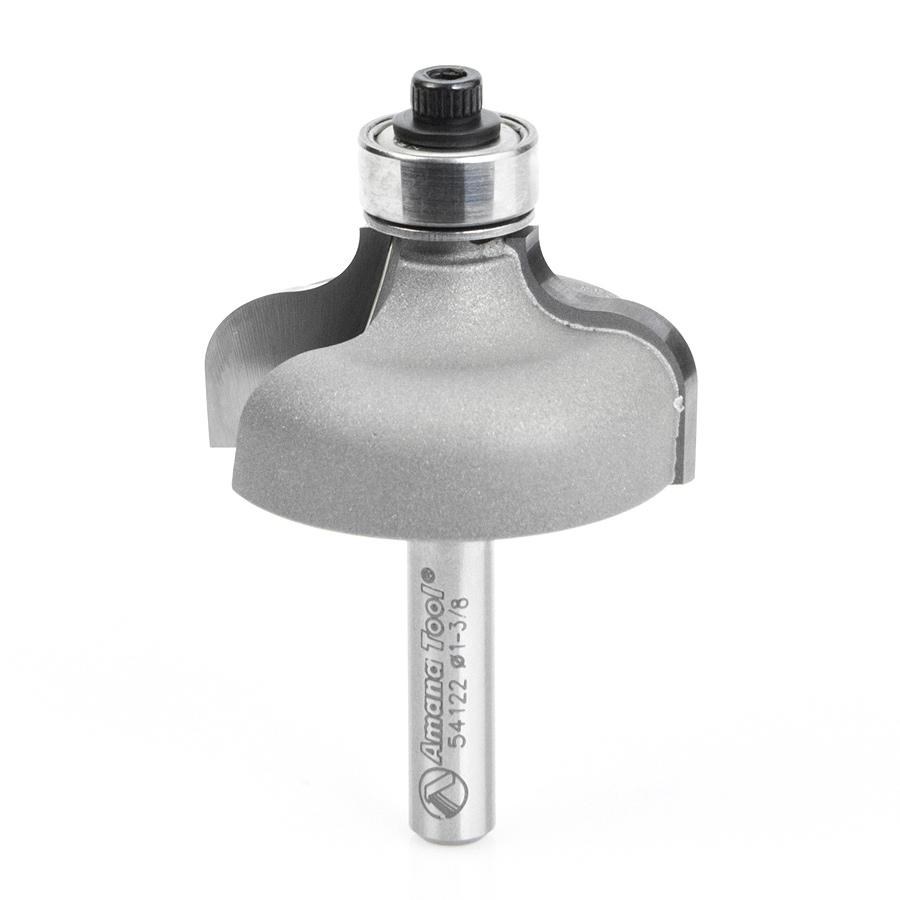

ROUTER BIT, 3/16" & 1/4"R, EDGE FORMING

The ogee is one of the basic shapes used in moldings and decorative profiles. An S-shaped curve, it is convex at the top fairing down into a concave (shown inverted). The ogee bit is characterized by the concave shape coming off the pilot bearing. Using the optional 3/8" bearing produces a profile with a fillet at the convex end of the curve. Use in a handheld or table-mounted router.

Diameter (D): 1-3/8
Radius (R): 1/4
Cutting Height (B): 11/16
Shank (d): 1/4
Overall Length (L): 2-3/16
Replacement Bearing: 47706
R1: 3/16
Flutes: 2
