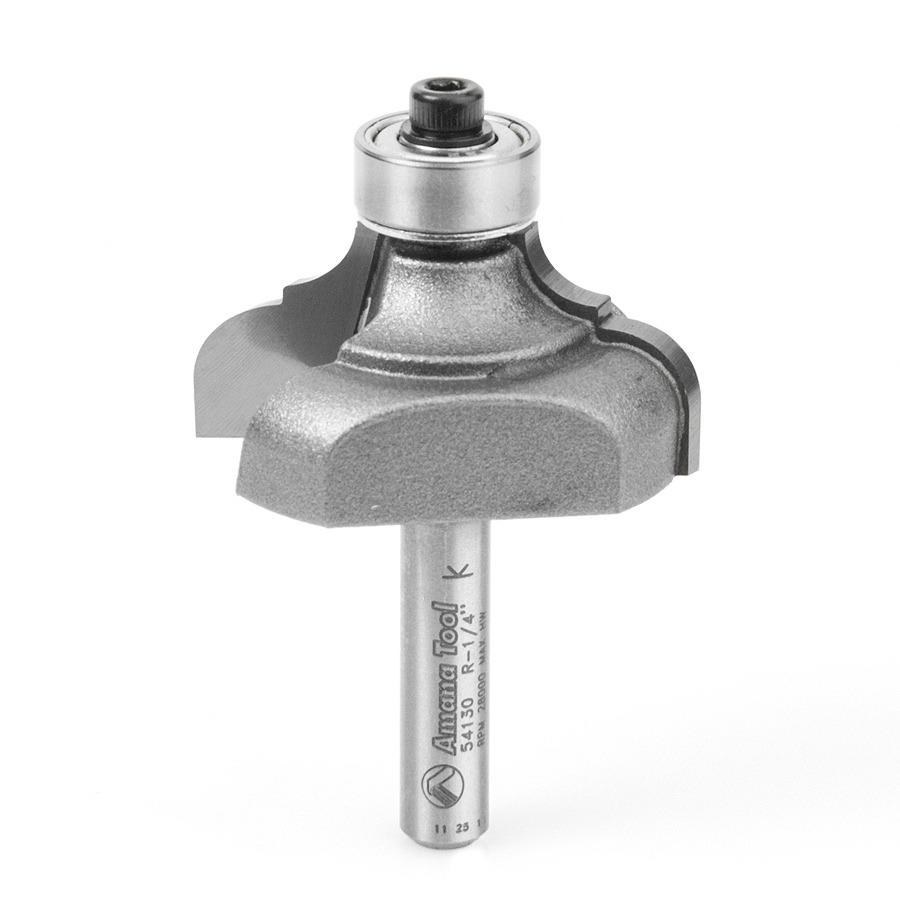

ROUTER BIT, 1/4" R, EDGE FORMING

The positions of the bead and the cove are reversed on this series of bits, with the bead coming off the bearing. With the optional 3/8" pilot bearing, the bit produces a fillet at the base of the bead. Largest diameter bits should be run at reduced speed. Use in a handheld or table-mounted router.

Diameter (D): 1-3/8
Radius (R): 1/4
Cutting Height (B): 11/16
Shank (d): 1/4
Overall Length (L): 2-3/16
Flutes: 2
