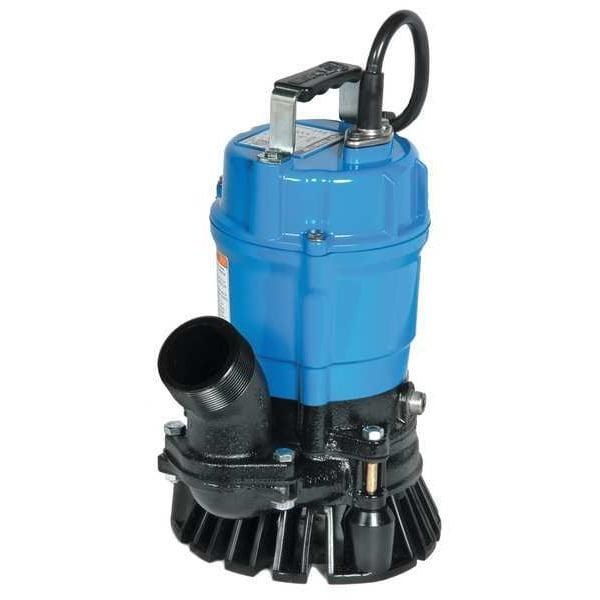

PUMP, TSURUMI SUBMERSIBLE,TRASH 2", 110 V ELECTRIC

Tsurumi Submersible Trash Pump 2-inch Discharge 52 GPM
Urethane Semi Vortex Impeller

The Tsurumi HS2.4S-62 Heavy duty submersible trash pump suspend solids when pumping sand and debris with minimum wear and clogging. This contractors trash pump has a semi-vortex urethane rubber impeller with agitator that suspends solids and allows for pumping of sand and stringy material. It has double inside mechanical seals with silicon carbide faces, running in an oil filled chamber and further protected by a lip seal running against a replaceable, stainless steel shaft sleeve provides for the most durable seal design available.

Tsurumi Model No. HS2.4S-62

Durable Trash Pump pumps sand, solids and debris with minimal wear and clogging.
20' Power cord
Continuous Running Water Level: 3.5"
Built in thermal & amperage sensing protector prevents motor failure due to overloading or accidental run dry conditions
Double shielded, permanently lubricated, high temperature C3 ball bearings rated for a B-10 life of 60,000 hours extend operational life
V-Ring Seal design protects mechanical seal from abrasive particles
Semi-vortex impeller
Max. Dia. Solids 1/4 "
Applications

Residential, commercial, industrial wastewater and construction site drainage
Effluent transfer
Decorative waterfalls and fountains
Raw water supply from rivers or lakes.
Sediment removal from small sumps or basins.
Nonflammable Liquids Only
GENERAL DATA
MAX. FLOW: GPH 3,120 GPH/52 GPM
MAX. HEAD: ft 39'
PUMP TYPE Elect.Submersible, Solids Handling
DISCHARGE CONNECTION 2" NPT
SHIPPING WEIGHT : lbs 25
DEMENSIONS Diameter 10 1/16" Height 12 15/16"

ELECTRICAL/MOTOR DATA
MOTOR RATING: HP
1/2
MOTOR AMPS
5.4
VOLTAGE
110 volt 60Hz
MOTOR RPM
3320
MOTOR PROTECTION
Thermal Automatic
POWER CORD: GAGE; LENGTH
16/3; 20'
MAXIMUM LIQUID TEMPERATURE
104 F
