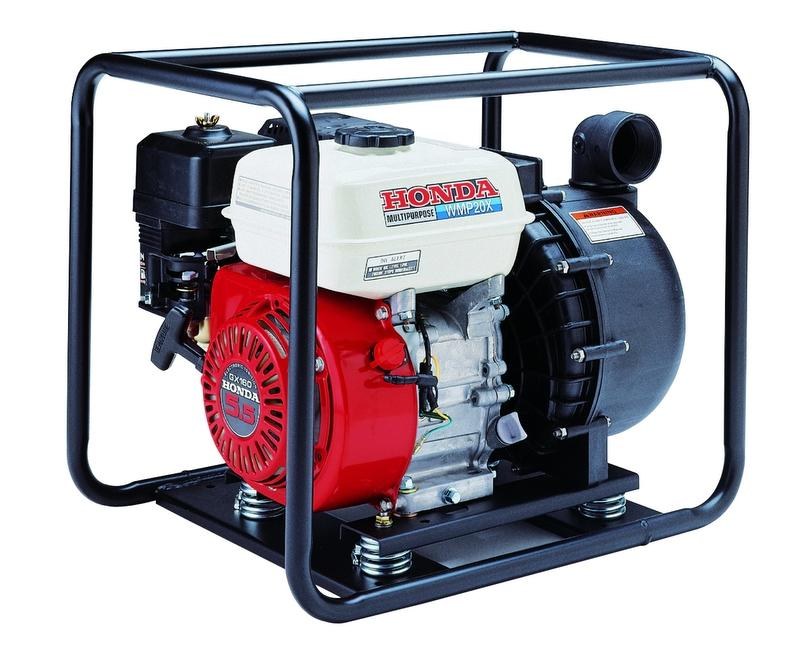

PUMP, CHEMICAL RESISTANT, 2", 5.5 HP HONDA

WMP20
WMP20XA1T
2" multi-purpose pump
Designed for pumping industrial and agricultural chemicals
220 gal./min capacity
Thermoplastic pump housing for chemical capability

Specifications
EngineGX160
Displacement163cc
Bore and stroke2.7" x 1.8"
Compression Ratio9.0:1
Oil AlertStd
Pump TypeMulti-purpose Centrifugal Self-priming
VoluteRigid Mounted Fiberglass reinforced polyester
ImpellerFiberglass reinforced polyester
Mechanical Seal (Pump case / impeller)Carbon/Ceramic
Priming time65 sec. @ 16.4 ft.
Drive systemDirect
Discharge capacity220 gals./min.
Suction port diameter2" NPT
Discharge port diameter2" NPT
Total head lift102 ft.
Suction head lift26 ft.
Maximum pressure44 psi
Solids handlingN/A
Dimensions (LxWxH)20.5" x 15.7" x 17.7"
Dry weight57 lb.
Fuel Capacity0.82 gal
Run Time @ Max Discharge1.5 hr
Strainer Part #78325-YE0-003
Residential Warranty24 months
Commercial Warranty12 months
