MINI SKID STEER , WACKER , YANMAR TURBO DIESEL 1225# CAPACITY W/ PRODUCTIVITY PACKAGE

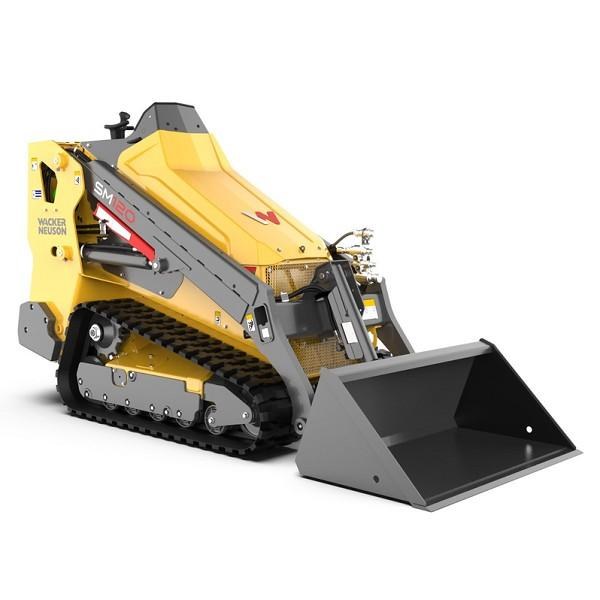

Genuine OEM Wacker Neuson SM120 Utility Track Loaders 1000506634
The Wacker Neuson SM120 utility track loader has a rated operating capacity (ROC) of 1,226 lbs (35% of tip load) and a tipping load of 3,503–3,507 lbs. It is powered by a 24.7 hp Yanmar diesel engine, features a 41-inch width with 11-inch tracks, and has a 12.9 gpm auxiliary hydraulic flow.
Wacker Neuson
Wacker Neuson
+5
Key Capacity and Technical Data:
Rated Operating Capacity (35%): 1,225.8 - 1,226 lbs
Tip Load: 3,503 - 3,507 lbs
Operating Weight: 3,754.5 lbs
Engine: 24.7 hp Yanmar diesel
Hydraulic Flow: 12.9 gpm
Fuel Tank Capacity: 16.9 gal
Width: 41 inches
UTS Equipment Company
UTS Equipment Company
+7
The SM120 is designed for high productivity, featuring a quick-attach system, a 5-foot 3-inch dump height, and a, 14-pin attachment control for complex attachments.


Description:

The capacity and maneuverability of the SM120 utility track loader combine to give it outstanding efficiency on the job site.
The productivity package puts major workgroup controls at the operator's fingertips allowing for function shifting on the fly.

Highlights:

All Day Comfort
Extra Wide Tracks
Switch Functions On the Fly
Ride Control
OPERATING FLUIDS Metric Imperial

Fuel Tank capacity 64,0 l 16,9 gal US

NAMEPLATE Metric Imperial

Company PUM PUM

ENGINE Metric Imperial

Cylinder 3, 3 3, 3

Power rating max. 18,5 kW, 18,5 kW 24,8 hp, 24,8 hp

Cooling Water-cooling, Water-cooling Water-cooling, Water-cooling

Engine Manufacturer Yanmar, Yanmar Yanmar, Yanmar

Cylinder capacity 1.266 cm3, 1.266 cm3 77,3 Inch3, 77,3 Inch3

Operating Engine speed 2.600 1/min 2.600 1/min

Operating power 18,4 kW 24,7 hp

Engine Designation 3TNV80 FT, 3TNV80 FT 3TNV80 FT, 3TNV80 FT

Maximum torque 85,0 Nm, 85,0 Nm 63,0 lb/ft, 63,0 lb/ft

Engine type Diesel engine, Diesel engine Diesel engine, Diesel engine

MECHANICAL - OUTPUT DETAILS Metric Imperial

Ground Pressure(Standard track 0,27 bar 3,9 psi

Travel speed 8,4 km/h 5,2 m/H

HYDRAULIC Metric Imperial

Auxiliary relief pressure 227 bar 3.291,5 psi

Flow rate 49 l/min 12,9 gal/mi

MECHANICAL DETAILS Metric Imperial

Length without Bucket 2.141 mm 84,3 "

Length with Bucket 2.742 mm 108,0 "

Track width 230 mm 9,1 "

Bucket roll back at height max 92 ° 92 °

Length of Track on Ground 1.093 mm 43,0 "

Operating weight 1.703,0 kg 3.754,5 lb

Bucket height at height max. 1.595 mm 62,8 "

Angle of departure 25 ° 25 °

Bucket roll back at ground 25 ° 25 °

Ground clearance 198 mm 7,8 "

Buck. dump angle at height max 42 ° 42 °

Height 1.478 mm 58,2 "

Overall width without bucket 902 mm 35,5 "

Dump reach at max. height 557 mm 21,9 "

Bucket Hinge Pin Height 2.176 mm 85,7 "

CHASSIS Metric Imperial

ROC at 35% Tip Load 556 kg 1.225,8 lb

ROC at 50% Tip Load 795 kg 1.752,7 lb

Tip Load 1.589 kg 3.503,1 lb
