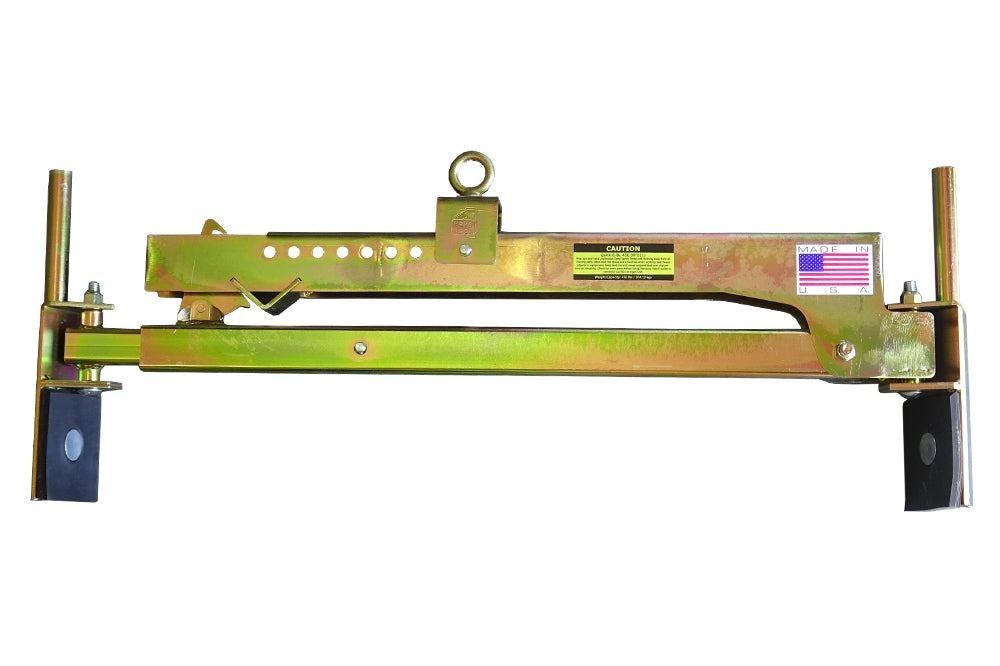

Lifting Clamp, Quick-E-BL 450 Clamp

he Quick-E-Block Clamp can grab multiple blocks from your pallets just as they are delivered to the job site.
Scroll Down to View Videos Please
A 3-man crew with no Geo-Grid can install about 300 - 500 sf of wall block a day.

Pairs well with: Quick-E-Adjustable Chain

Quick-E-BL 450 Reinforced Replacement Pads Available.

INSTRUCTIONS: Use the Quick-E-Block Clamp by pulling the bottom pin to adjust to the clamp width. The coupler is held in place with a second pin - it should be centered between the two clamping pads. Hook a rated chain, cable or strap to your machine and the clamp. You’re now ready to lay block with minimal effort! Quickly pick up on the chain manually or with your bucket to clamp the block. Set the block about 6” from the those last laid then pick up slowly on the chain to pick the clamp off the block. Now simply slide the blocks into place. When laying multiple cells with tapered sides, one block will be reversed. Simply spin the block around and slide it into place. You’re never lifting the block - just slide it.
NOTE: A hard hat should be worn at all times. Stay out of the swing zone and never get under the clamped block.
