LASER, GRADE BLUETOOTH DIGITAL DUAL SLOPE W/ HL760 DETECTOR, RC402 REMOTE, ROD CLAMP- NIMH BATTERIES, CHARGER, CASE

The automatic, self-leveling Spectra Precision® GL1425C dual grade lasers is the most rugged, cost-effective lasers that do three jobs—level, grade, and vertical alignment. Even in harsh jobsite conditions, the GL1425C delivers consistently reliable and accurate performance, enabling you to work faster and smarter.

The rugged GL1425C lasers can withstand drops of up to three feet onto concrete and tripod tipovers up to five feet. This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.

The GL1425C laser system now includes the advanced HL760 Digital Readout (DRO) receiver that provides automatic Grade Match, PlaneLok and Fingerprint function.

Grade Match measures and displays the existing grade over unknown ground. As a consequence it eliminates time consuming and error prone calculations

PlaneLok automatically locks on to an existing horizontal elevation or vertical alignment point which eliminates all drift or possibility of error due to improper calibration or weather.

The unique “Fingerprint” function only accepts the beam from the laser it is paired with.


Leveling Accuracy: ± 1.5 mm/30 m, 1/16″ @ 100 feet, 10 arc seconds
Operating Diameter: 800 m, 2,600 feet
Grade Range: -10% to +15% Dual Axis
Rotation: 300, 600 rpm
Laser Type: red diode laser 650 nm
Laser Class: Class 2, <3.4 mW
Self-Leveling Range: ±5° (±9%)
Leveling Indicators: LCD indications and LED flashes
Radio Range (HL760): up to 330 feet
Power Source: 10.000 mAh NiMH battery pack
Battery Life: 35 hours NiMH, 50 hours Alkaline
Operating Temperature: -4°F to 122°F
Storage Temperature: -4° to 158°F
Tripod Attachments: 5/8 x 11 horizontally and vertically
Dust and Waterproof: Yes – IP66
Weight: 6.8 lbs
Low voltage indication: LED battery indicator
Low voltage disconnection: unit shuts off
Warranty: 5 Years

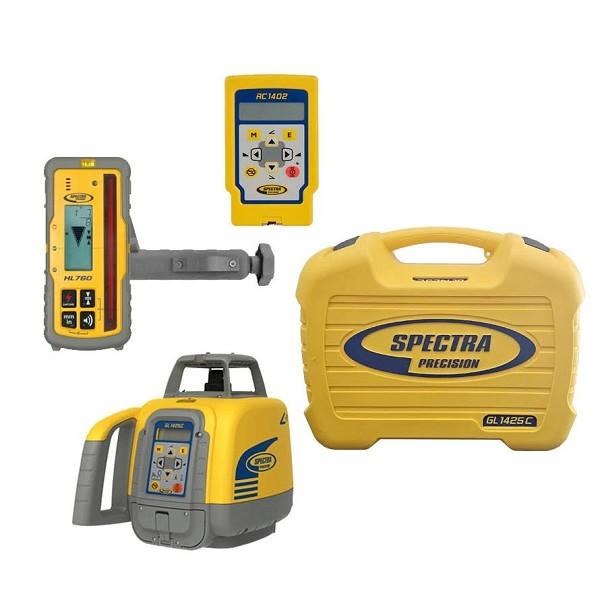

Includes:

GL1425C Dual Grade Laser Transmitter
HL760 Deluxe Receiver with C70 Rod Clamp
105516 Vertical Adapter for HL Receiver
Spartphone Bluetooth Remote Control / Free App
Rechargeable Batteries
Small Carrying Case
Multilanguage CD, Quick user guide and Safety Instructions
