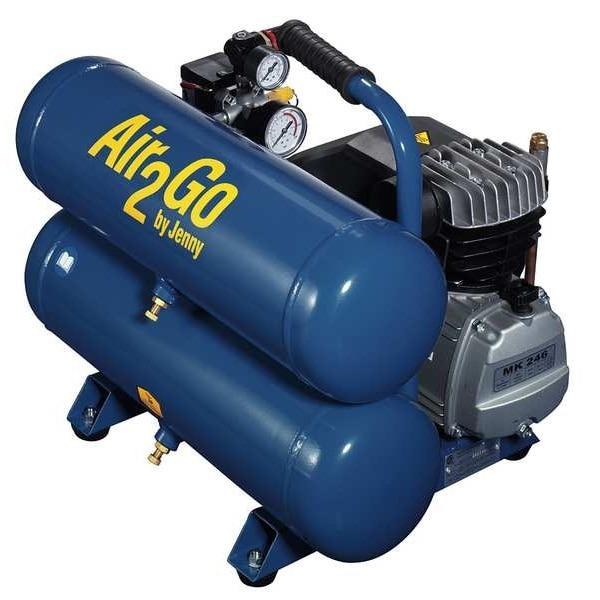

COMPRESSOR, 2 HP, ELEC DIRECT DRIVE, 4.0 CFM @ 100 PSI, 4.4 GAL. DUAL TANKS

rand
Jenny
MFR #
A2G246-HC4V-115/1
Zoro #
G6130126
UPC #
885188000093
Country of Origin
Multiple
Category
Portable Electric Air Compressors
Need Help?
Our customer service team is here for you.
Frequently Asked Questions
Contact Us
Dimensions
Tank Size 4.2 gal.
Overall Length 20 in
Overall Height 16.5 in
Overall Width 15.5 in
Tank Size - Air Compressor 4.2 gal
Air Tank Size 4.2 gal
Outlet Size 1/4 in
Details
Voltage 115VAC
Max. Pressure 125 psi
HP 2
Tank Type Hand Carry
Free Air CFM @ Max. Pressure 3.4
Includes Compressor Oil
Compressor Type Hand Carry Portable Air Compressor
Weight 58 lb
Standards CSA, UL
HP - Air Compressor 2.0 hp
Motor Type Induction
Item Portable Air Compressor
Full Load Amps 12.6
Max. Pressure - Air Compressor 125 psi
Tank Style - Air Compressor Twin Stack
Item - Air Compressor Portable Air Compressor
Avg. Pump Life 2,500 hr
Cylinder Material Cast Iron
Input Voltage - Air Compressor 120V AC
Free Air CFM @ 90 PSI - Air Compressor 3.8
Weight - Air Compressor 58 lb
Lubrication Type - Air compressor Oil Lubricated
(F)NPT Outlet 1/4 in
Free Air CFM @ 90 PSI 3.8
Motor RPM 3,400 RPM
Free Air CFM @ Max. Pressure - Air Compressor 3.3
Lubrication Type Oil Lubricated
dBA @ 3 Feet 86
Sound Level 86 dBA
Input Voltage 120V AC
Thermal Protection Manual Reset
Number of Cylinders 2
Outlet Type NPT
Air Tank Style Twin Stack
Compressor Lubrication Type Oil Lubricated
Tank Style Twin Stack
Sound Level Range Standard (75 dBA or more)
Number of Stages 1
Maximum Operating Pressure 125 psi
Maximum Speed 3,400 RPM
Free Air Flow Rate @ Maximum Pressure 3.40 cfm
Duty Cycle Continuous
Current Rating 12.6 A
Average Pump Life 2,500 hr
Free Air Flow Rate 3.8 cfm
Electrical Connection Cord with Plugs
Pump Type Piston
Control Type Pressure Switch
Outlet Gender Female
Output Power 2 hp
