ANCHOR CONCRETE WEDGE 1" X 6" BOX OF 10

Product Description

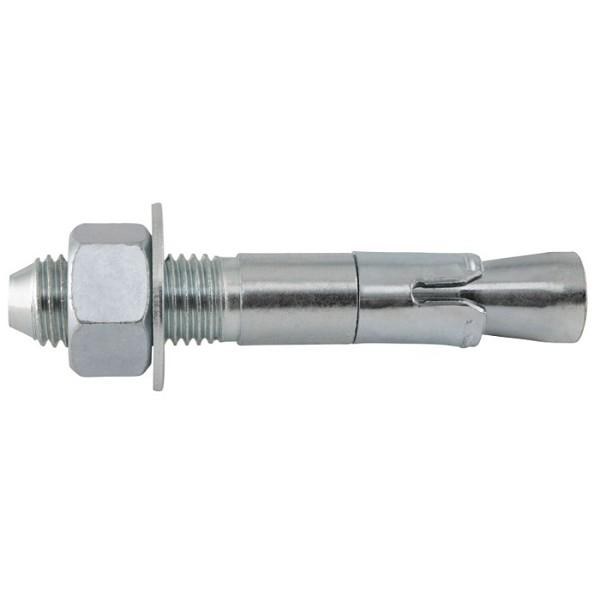

The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and un-cracked concrete. Suitable base materials include normal-weight concrete, structural sand-lightweight concrete and concrete over metal deck. The anchor is manufactured with a zinc plated carbon steel body and expansion clip. Nut and washer are included.

1" x 6" Powers Power-Stud+ SD1 Strength Design Concrete Wedge Anchors, Carbon Steel Zinc Plated Body and Expansion Clips
Consistent performance in high and low strength concrete
Nominal drill bit size is the same as the anchor diameter
Anchor can be installed through standard fixture holes
Length ID code and identifying marking stamped on head of each anchor
Anchor design allows for follow-up expansion after setting under tensile loading

The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, lightweight concrete, concrete over steel deck and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.

General Applications & Uses
Structural connections, i.e., beam and column anchorage
Barriers and guards
Mezzanines and racking
Trapeze / overhead utilities
Equipment anchorage
Safety-related attachments
Fencing and railing
Tension zone applications, i.e., cable trays and strut, pipe supports, fire sprinklers
Ledgers, angles and brackets
Seismic and wind loading (SDC A - F)
Approvals & Listings
International Code Council, Evaluation Service (ICC-ES), ESR-2818 for cracked and uncracked concrete
Code compliant with the 2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC, and 2012 IBC/IRC
Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and uncracked concrete including seismic and wind loading (anchor Category 1)
City of Los Angeles, LABC and LARC Supplement (within ESR-2818 and ESR-2966)
Underwriters Laboratories (UL Listed) - File No. EX1289, see listing for sizes
International Code Council, Evaluation Service (ICC-ES), ESR-2966 for masonry
Tested in accordance with ACI 355.2/ASTM E488 and ICC-ES AC193 for use in structural concrete under the design provisions of ACI 318 (-19 or -14) Chapter 17 or ACI 318 Appendix D
Tested in accordance with ASTM E488 and ICC-ES AC01 for use in masonry
Florida Building Code, FBC Supplement including HVHZ (within ESR-2818 and ESR-2966)
FM Approvals (Factory Mutual) - see FM Approval Guide for sizes
Features
Consistent performance in high and low strength concrete
Anchor can be installed through standard fixture holes
Anchor design allows for follow-up expansion after setting under tensile loading
Nominal drill bit size is the same as the anchor diameter
Length ID code and identifying marking stamped on head of each anchor
What’s in the Box?
(10) 7461SD1 Power-Stud+ SD1 Wedge Expansion Anchor, 1 in. x 6 in.
