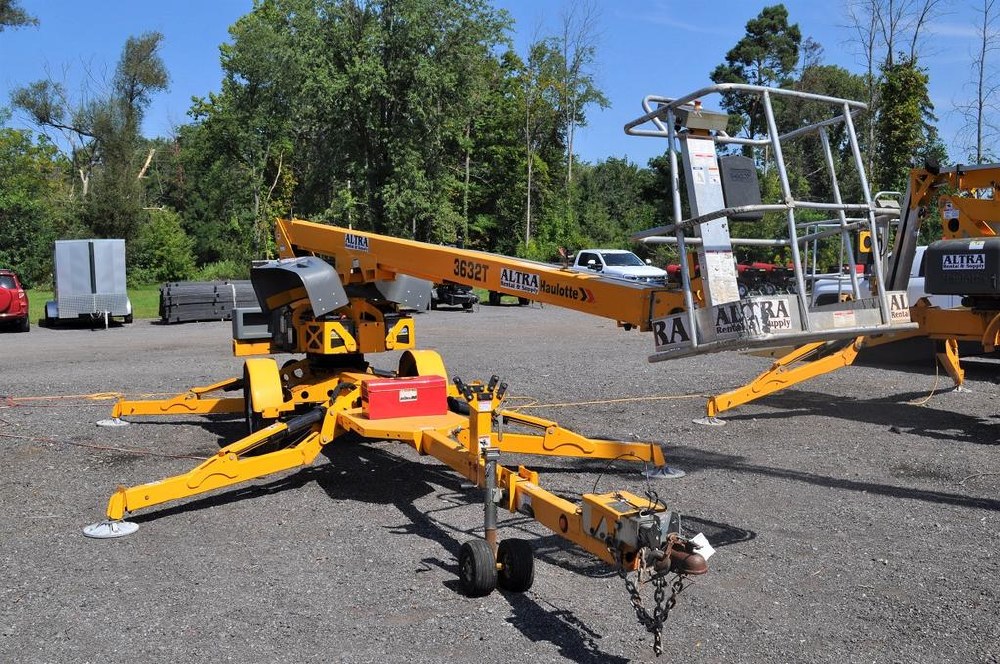

36' Towable Boom Lift

Year: 2020



Can be towed by a standard half-ton pickup truck - No commercial driver’s license needed

Hydraulic outriggers and automatic leveling allow operation in under 30 seconds

Superior combination of industry leading capacity and outreach

Air / water lines and 110V GFI protected power to the platform


Working height 43 ft 6 in
Platform height 37 ft 6 in
Lift capacity 500 lb
Length - stowed 22 ft 8 in
Width stowed 5 ft 6 in
Height stowed 6 ft 8 in
Platform size 4 ft 1 in x 2 ft 9 in
Turntable rotation 350° non-continuous
Jib - length N/A
Jib - Vertical Motion N/A
Tow speed rating 65 mph
Leveling capability 12.5 °
Tire size ST 225/75 R15
Power source 4 x 6 V 245 amp-hr
Weight (no options) 4,400 lb
Widest Point 13 ft 9 in
Widest Point 13 ft 6 in
Horizontal outreach (from centerline) 32 ft
Horizontal outreach (from edge of footpad) 27 ft
