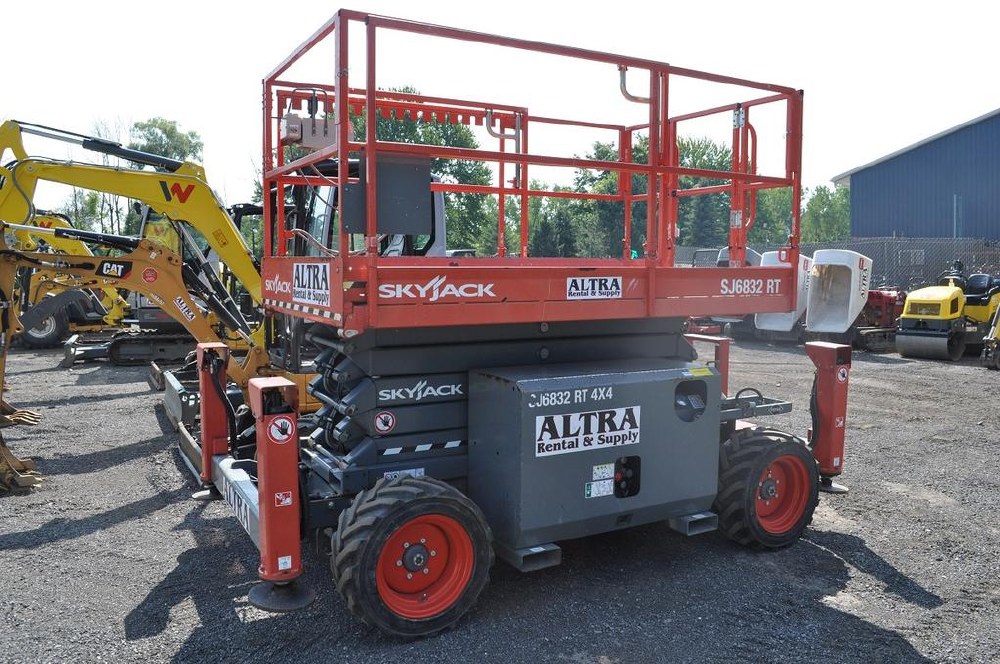

32' Rought Terrain Scissor Lift- GAS & LIQUID PROPANE

Year: 2019
Hours: 370



Work Height 38’ (11.58 m)
Raised Platform Height 32’ (9.75 m)
Lowered Platform Height 54” (1.37 m)
Overall Width 69.5” (1.76 m)
Overall Length 107” (2.72 m)
Stowed Height (Rails Up) 99” (2.51 m)
Stowed Height (Rails Down) 69” (1.75 m)
Platform Width (Inside Dimension) 99” (2.51 m)
Platform Length (Inside Dimension) 96” (2.44 m)
Extension Deck 5’ (1.52 m)
Ground Clearance 8” (0.20 m)
Wheelbase 80.5” (2.04 m)
Weight 7,660 lbs (3,475 kg)
Gradeability 40%
Turning Radius (Inside) 60” (1.52 m)
Turning Radius (Outside) 156” (3.96 m)
Lift Time (With Rated Load) 39 sec
Lower Time (With Rated Load) 36 sec
Drive Speed (Stowed) 3.8 mph (6.1 km/h)
Drive Speed (Raised) 0.4 mph (0.6 km/h)
Maximum Drive Height Full Height
Capacity 1,000 lbs (454 kg)
Distributed Capacity (Main Platform) 700 lbs (318 kg)
Distributed Capacity (Extension Deck) 300 lbs (136 kg)
Local Floor Load (With Rated Load) 181 psi (1248 kPa)
Overall Floor Load (With Rated Load) 297 psf (14 kPa)
Maximum # of Persons 4
Tire Type Foam Filled
Tire Size 26 x 12
