WACKER NEUSON SALES $2,519.98

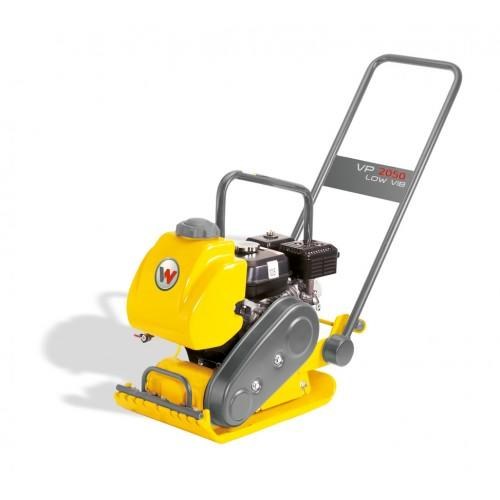

TAMPER, PLATE 20" X 23", FORWARD, WITH WATER TANK, VP2050AW, 4500#, 5.5 HP HONDA
Part Number: VP2050AWDescription
Single direction vibratory plate with water tank for soil and asphalt compaction
Designed for compaction in confined areas of granular soil in narrow trenches
Ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction
Special contoured running surfaces and rounded edges provide maximum performance and maneuverability
Completely enclosed belt protected by a lightweight belt guard for reduced wear and minimal service
Newly designed “low-vibration” guide handle greatly improves operator comfort and minimizes operator fatigue
Heavy-duty shock mounts on engine console dampen vibrations thereby reducing wear on the components
Exciter bearing design requires minimal maintenance for improved productivity
Single direction plate compactor gas powered
Large solid lifting eye for safe lifting
Handles on the base of the equipment allow easy transportation
Wacker VP2050AW Compactor Specifications
Length x width x height (handle in working position) 40.7 x 15.2 x 37 in
Ground Clearance 23 in
Operating weight 193 lbs | 83 kg
Area Capacity 8.073,0 ft2/h
Forward Running 1,4 fps
Gradeability up to 36.4%
Vibration frequency 97 Hz
Max. centrifugal force 4.496 lbf
Engine Type Honda Gas
Air-cooled, 4 cycle, single cylinder
Displacement 9.9 in 3
Max. power output (@3900 rpm) 5.5 hp
Rated power output (@3600 rpm) 5.0 hp
Tank capacity 1,0 gal US
Nominal Engine speed 3.600 1/min
Designed for compaction in confined areas of granular soil in narrow trenches
Ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works and building construction
Special contoured running surfaces and rounded edges provide maximum performance and maneuverability
Completely enclosed belt protected by a lightweight belt guard for reduced wear and minimal service
Newly designed “low-vibration” guide handle greatly improves operator comfort and minimizes operator fatigue
Heavy-duty shock mounts on engine console dampen vibrations thereby reducing wear on the components
Exciter bearing design requires minimal maintenance for improved productivity
Single direction plate compactor gas powered
Large solid lifting eye for safe lifting
Handles on the base of the equipment allow easy transportation
Wacker VP2050AW Compactor Specifications
Length x width x height (handle in working position) 40.7 x 15.2 x 37 in
Ground Clearance 23 in
Operating weight 193 lbs | 83 kg
Area Capacity 8.073,0 ft2/h
Forward Running 1,4 fps
Gradeability up to 36.4%
Vibration frequency 97 Hz
Max. centrifugal force 4.496 lbf
Engine Type Honda Gas
Air-cooled, 4 cycle, single cylinder
Displacement 9.9 in 3
Max. power output (@3900 rpm) 5.5 hp
Rated power output (@3600 rpm) 5.0 hp
Tank capacity 1,0 gal US
Nominal Engine speed 3.600 1/min
